OMAX 40X-2500X USB 3.0 5MP Digital Phase Contrast Trinocular Compound

• Super speed 5MP USB 3.0 color digital camera with 0.5X reduction lens and 0.01mm calibration slide
• Phase contrast microscope for viewing live cell cycle, no staining required to view the slide
• Four phase contrast lenses and one bright field Abbe condenser on one disk, fast and easy to switch, no condenser change needed
• 6V/20W halogen transmitted light with adjustable brightness intensity
• Large double layer mechanical stage and coaxial coarse & fine focus knobs

This professional trinocular compound microscope provides phase contrast/brightfield microscope system and a super speed 5MP USB 3.0 digital imaging system. The compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It comes with halogen illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, a complete set of phase contrast objectives and turret mounted phase plate assembly. It offers six levels of brightfield magnification from 40X to 2500X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X (S, Oil). It also offers magnification power: 100X-200X-250X-400X-500X-1000X-2500X.
The 2560x1922 pixels USB 3.0 digital imaging system that captures still microscope images and live video on computer. The included software is compatible with Windows, Mac OS X and Linux operating systems (see version information below). The Windows software can also be used to make measurements.
This phase contrast compound microscope is widely used clinical, biological research and schools, specially for observing live cells.

• Model: M837Z-PHB3-C50U3
• Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X
• Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X
• Eyepieces: widefield WF10X/18 and WF25X
• Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)
• Phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil)
• Viewing head: 45°Inclined 360°swiveling trinocular
• Interpupillary distance: sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)
• Diopter: adjustable on both eyepiece tubes
• Nosepiece: revolving quadruple
• Stage: mechanical stain-resistant double layer, size: 5-1/2" x 5-1/2" (140mm x 140mm), translation range: 3" x 2" (75mm x 50mm)
• Photo tube adjustment range: 5/8" (15mm)
• Focus: coaxial coarse and fine focus knobs on both sides, rack & pinion adjustment, with tension control
• Focusing knob can be locked for observation & transportation
• Condenser & diaphragm: Abbe NA1.25 rack & pinion adjustment condenser with iris aperture diaphragm
• Phase contrast kit:
  - Substage phase contrast condenser disk with five switchable positions:
  - One bright field NA1.25 with iris diaphragm Abbe condenser
  - Four phase contrast condensers: 10X, 20X, 40X, 100X
  - Each phase contrast condenser can be centered individually
  - Four PH objectives: 10X, 20X, 40X (S), 100X (S, Oil)
  - 37mm mounting size in diameter
  - Centering telescope: 23.2mm
• Black palm rest on the base
• Illumination: transmitted (lower), 6V/20W halogen bulb, variable intensity
• Metal mechanical components
• Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
• Digital camera:
  - True color 2560x1922 pixels (5M pixels)
  - Super speed USB 3.0 connection
  - 0.5X reduction lens to get larger field of view
  - 0.01 mm calibration slide: 1mm/100 division
  - Frame speed: 14.2fps at 2560x1922, 38.3fps at 1280x960, 101.2fps at 640x480
  - Software compatible with Windows, Mac OS X and Linux operating systems
  - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
  - USB 3.0 cable included
• Dimension of microscope: 7-7/8 " x 10-1/4" x 16" (20cm x 26cm x 41cm)
• Dimension of phase contrast kit: 12" x 9" x 5-11/16" (30.5cm x 23cm x 14.5cm)
• Shipping packages: 15 lbs (7 kg) & 5 lbs (2 kg)

Software:

Please check the chart below for computer operating system compatibility

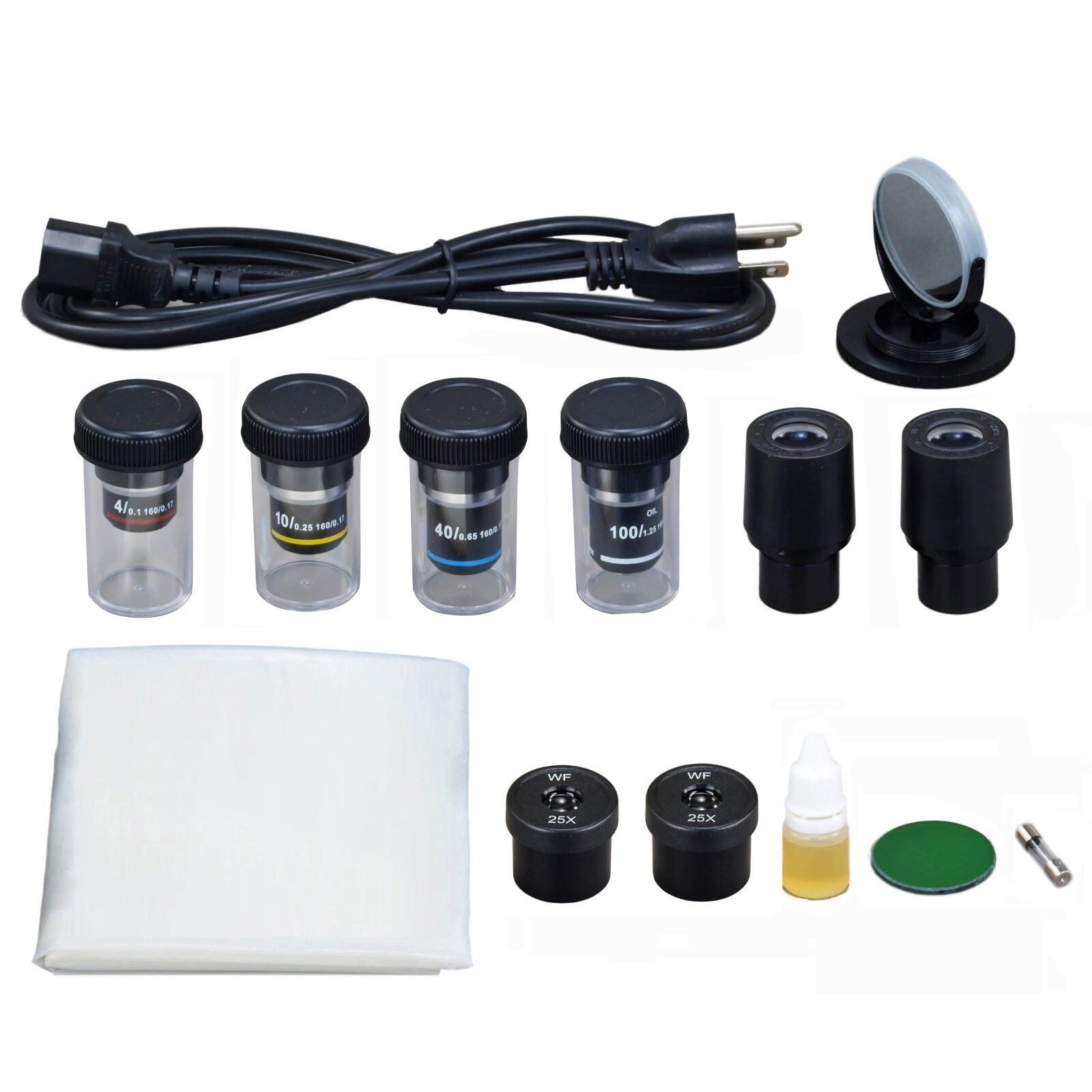

• Trinocular microscope head
• Microscope stand
• Photo tube
• 4 objectives: 4X, 10X, 40X, 100X
• A pair of eyepieces WF10X/18
• A pair of eyepieces WF25X
• A bottle of immersion oil
• Power cord (US and Canada standard)
• Mirror for power outage
• Dust cover
• Color filter
• Extra fuse
• Phase contrast kit:
  - 1 centering telescopic eyepiece
  - 4 phase contrast objectives: 10X, 20X, 40X, and 100X
  - 1 condenser disk with bright field condenser and 4 phase contrast filters
  - 1 green filter
  - 1 screw driver
  - 1 aluminum phase contrast storage box
• Digital camera, including
  - 5MP USB 3.0 digital camera
  - 0.5X reduction lens
  - 1 CD including driver, software and user's instruction
  - 0.01mm calibration slide (stage micrometer)
  - USB 3.0 cable

• Other phase contrast kits
• Darkfield kits
• 16X eyepieces
• 20X eyepieces
• Carrying case
• Other USB digital cameras
• Temperature controlled add-on stage
• Prepared slides
• Blank slides
• Plastic slide storage box
• Glass slide cover
• UK power plug adapter
• Lens cleaning paper
